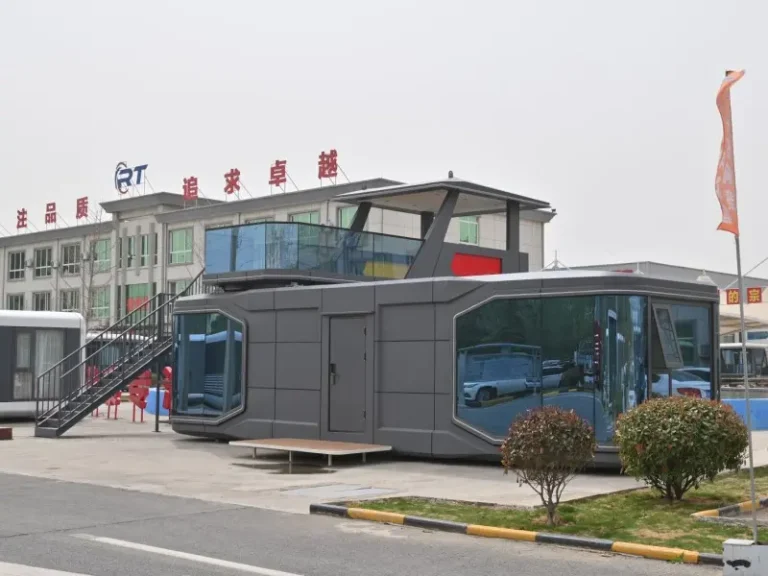

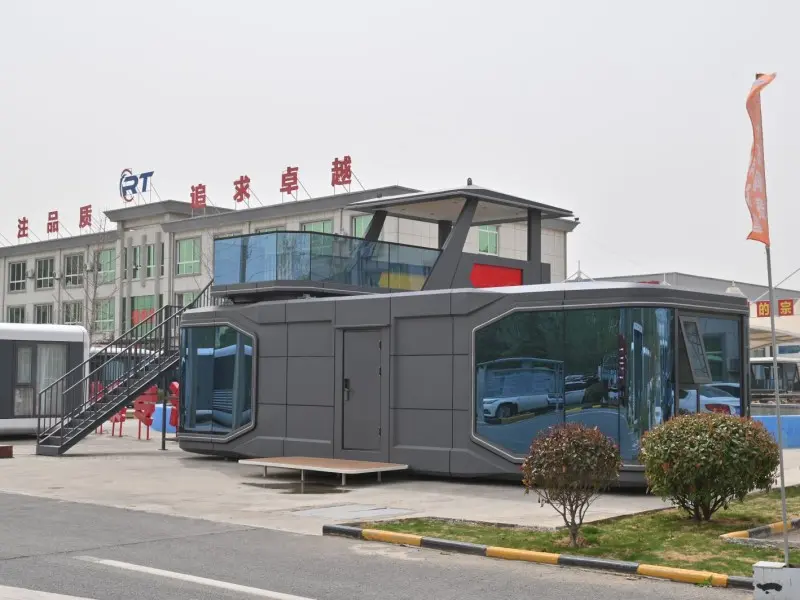

RT-S71 Space Capsule
RT-S71 Space Capsule
Product model
RT-S71
Square number
38m²+27m²
One layer specification
L 11.5m * W 3.3m * H 3.2m
Number of occupants
2
Second floor specifications
L 9m * W 3m * H 3m
Approximate total weight
12.5T
The RT-S71 space capsule adopts a double-layer modular design, with a total area of 65 square meters (38 square meters +27 square meters), which can be flexibly combined. Its main frame continues to follow the 4mm hot-dip galvanized steel standard, but it has added a mobile casters design for easy position adjustment. The cabin is equipped with sockets and USB panels that meet international electrical standards, compatible with electrical appliances from all over the world. The unique “card insertion power supply” system is energy-saving and environmentally friendly, suitable for use as a co-working space or mobile laboratory, meeting the needs of multiple scenarios.
|
1 |
Main Frame（Hot-dip Galvanized Steel Frame Structure, 4mm Thickness） |
|
2 |
Exterior Shell（Aluminum Alloy Single Panel, 2.0mm Thickness, Surface Metal Baking Paint Finish） |
|
3 |
Insulation, Thermal, and Waterproof Layer（Flame-retardant, High-density, High-strength, A+ Eco-friendly, Odorless Polyurethane Insulation Layer） |
|
4 |
Glass Curtain Wall（6+12A+6 Insulated Tempered Glass） |
|
5 |
Entrance Door（Fireproof Customized Doors） |
|
6 |
Entrance Lock（Waterproof Smart Door Lock for Outdoor Use, Hotel-grade） |
|
7 |
Electrical Equipment Room（Air Conditioning / Water Heater） |
|
8 |
Exterior LED Ambient Lighting |
|
1 |
Bathroom privacy door（one-way frosted tempered glass） |
|
2 |
Multifunctional showerhead |
|
3 |
Washbasin / sink / mirror / cabinet / floor drain |
|
1 |
Bathroom（high-end smart toilet） |
|
2 |
Ceramic bathroom flooring |
|
3 |
5-in-1 bathroom heater（lighting, ventilation, heating，ventilation,warming） |
|
1 |
High-end Custom Bamboo Fiber Ceiling |
|
2 |
Walls （High-end Custom Carbon Crystal Panels） |
|
3 |
Flooring （Stone Plastic Composite） |
|
4 |
Interior （Ambient Surround Light Strips） |
|
5 |
Downlighting |
|
6 |
Electric Curtain Track |
|
7 |
Full Blackout Curtain System |
|
1 |
Whole-house square meters cable entry, 8-core network cable |
|
2 |
PVC insulated line piping |
|
3 |
Whole-house explosion-proof and pressure-resistant water supply and drainage pipes |
|
4 |
Integrated electric water heater（ 1500W） |
|
5 |
Central air conditioning |
|
6 |
5-hole socket / 3-hole socket（International Electrical Standards） |
|
7 |
Switch panel / USB panel（International Electrical Standards） |
|
1 |
Lifting rings / transport fasteners / connectors |
|
2 |
Foot supports |
|
3 |
Three-step entrance ladder |
|
1 |
Card insertion for power-on / card removal for power-off |
|
2 |
Smart curtain control, smart voice system |
|
3 |
