RT-S70 Space Capsule
RT-S70 Space Capsule
Product model
RT-S70
Square number
38m²
Exterior specifications
L 11.5m * W 3.3m * H 3.2m
Number of occupants
2
Power
10KW
Approximate total weight
9.2T

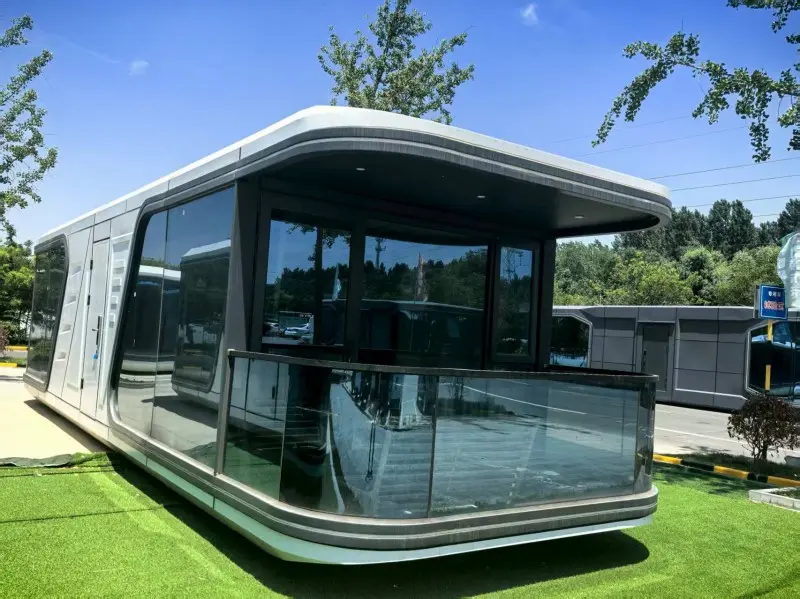

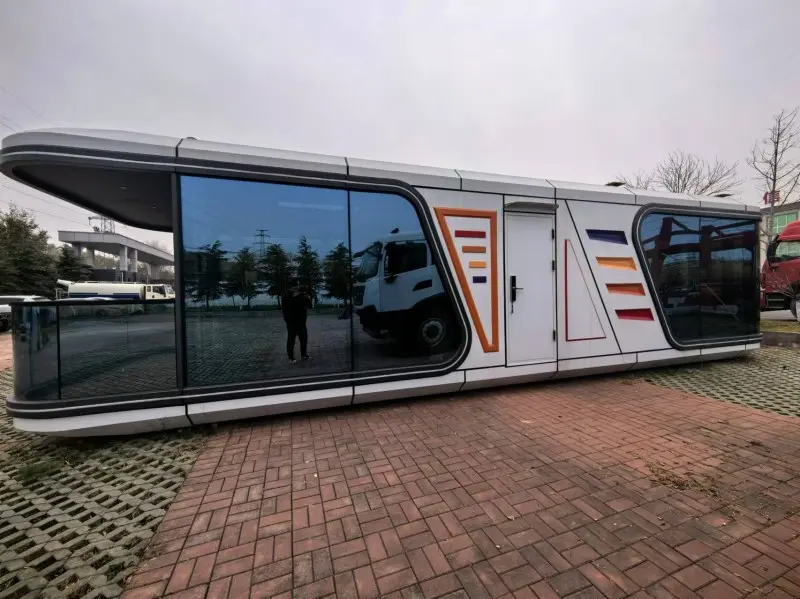

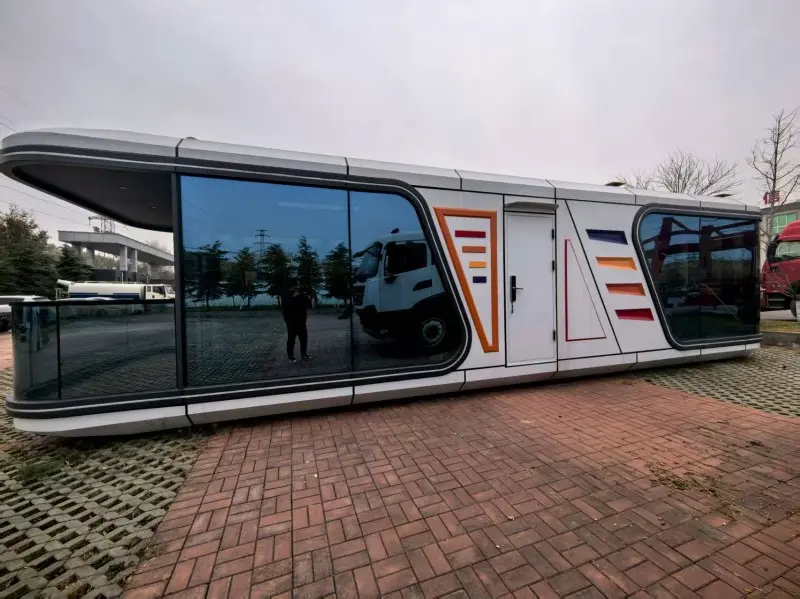

The RT-S70 space capsule has an exterior specification of 11.5m×3.3m×3.2m, featuring a super large space of 38m². It has a flexible layout of one bedroom, one living room, one bathroom and one balcony. With a total weight of only 9.2T, it is an extremely cost-effective choice. Its innovation lies in the external LED ambient lights, which can present various light and shadow effects at night, enhancing commercial appeal. The cabin is equipped with central air conditioning and integrated electric water heaters, featuring high energy efficiency. The combination of glass curtain walls and fireproof doors not only ensures lighting but also guarantees safety. The RT-S70 is suitable for use in market restaurants or temporary exhibition halls, combining functionality with visual impact.
|
1 |
Main Frame（Hot-dip Galvanized Steel Frame Structure, 4mm Thickness） |
|
2 |
Exterior Shell（Aluminum Alloy Single Panel, 2.0mm Thickness, Surface Metal Baking Paint Finish） |
|
3 |
Insulation, Thermal, and Waterproof Layer（Flame-retardant, High-density, High-strength, A+ Eco-friendly, Odorless Polyurethane Insulation Layer） |
|
4 |
Glass Curtain Wall（6+12A+6 Insulated Tempered Glass） |
|
5 |
Entrance Door（Fireproof Customized Doors） |
|
6 |
Entrance Lock（Waterproof Smart Door Lock for Outdoor Use, Hotel-grade） |
|
7 |
Electrical Equipment Room（Air Conditioning / Water Heater） |
|
8 |
Exterior LED Ambient Lighting |
|
1 |
Bathroom privacy door（one-way frosted tempered glass） |
|
2 |
Multifunctional showerhead |
|
3 |
Washbasin / sink / mirror / cabinet / floor drain |
|
1 |
Bathroom（high-end smart toilet） |
|
2 |
Ceramic bathroom flooring |
|
3 |
5-in-1 bathroom heater（lighting, ventilation, heating，ventilation,warming） |
|
1 |
High-end Custom Bamboo Fiber Ceiling |
|
2 |
Walls （High-end Custom Carbon Crystal Panels） |
|
3 |
Flooring （Stone Plastic Composite） |
|
4 |
Interior （Ambient Surround Light Strips） |
|
5 |
Downlighting |
|
6 |
Electric Curtain Track |
|
7 |
Full Blackout Curtain System |
|
1 |
Whole-house square meters cable entry, 8-core network cable |
|
2 |
PVC insulated line piping |
|
3 |
Whole-house explosion-proof and pressure-resistant water supply and drainage pipes |
|
4 |
Integrated electric water heater（ 1500W） |
|
5 |
Central air conditioning |
|
6 |
5-hole socket / 3-hole socket（International Electrical Standards） |
|
7 |
Switch panel / USB panel（International Electrical Standards） |
|
1 |
Lifting rings / transport fasteners / connectors |
|
2 |
Foot supports |
|
3 |
Three-step entrance ladder |
|
1 |
Card insertion for power-on / card removal for power-off |
|
2 |
Smart curtain control, smart voice system |
|
3 |
